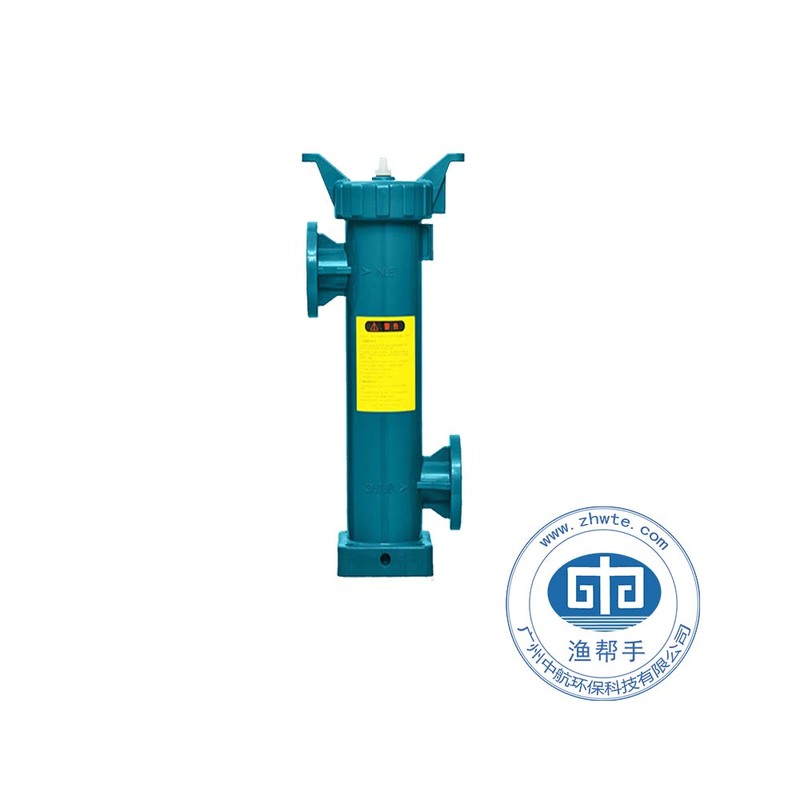

The product advantages

(1) screw the cap design so that it can open and close the cartridge without any tools, easy to replace. The outside of the barrel to increase the stiffener pressure increased to 0.6Mpa, the difference between the appearance of cheap similar appearance of the product, put an end to its high pressure can not withstand the leakage and safety problems.

(2) plastic bag filter with side-by-side filtration flow, free to switch the use of 2-inch silk port connection, but also replace the DN50 flange connection to help you more convenient to connect pipes and installation equipment.

(3) can be used to switch the special filter bag or filter.

(4) polypropylene seamless injection, light weight, 100% in line with the provisions of the US FDA-made health-grade polypropylene material, for most chemicals with superior corrosion resistance. Anti-ultraviolet new formula, is conducive to long-term use in the outdoor installation.

(5) anti-ultraviolet new formula, is conducive to long-term use in outdoor installation, the flow can reach 9-10m ³ / h, pressure 90PSI (6Kg / cm2), temperature 60 ℃.

(6) the filtrate flow channel with side design, chassis structure is simple, no ditch, no dead angle cleaning is very convenient. The inner seal structure is designed using the company's exclusive SDS seal ring to ensure 100% no leakage.

The technical parameters

(1) import and export spacing: 580mm (side into the bottom out)

(2) feet height: 315mm

(3) filter tube diameter: 158 (mm)

(4) filter blue length: 490 (mm)

(5) filter blue diameter: 149.1 (mm)

(6) import and export: DN50 (2 inch)

(7) into the way: side into the bottom out

(8) the filter area: 0.25 square meters

(9) flow: 5-9t / h

(10) working pressure (MAX): 0.6Mpa

(11) the filter volume: 17 liters

(12) Material: PPr

(13) filter weight: 8Kg
